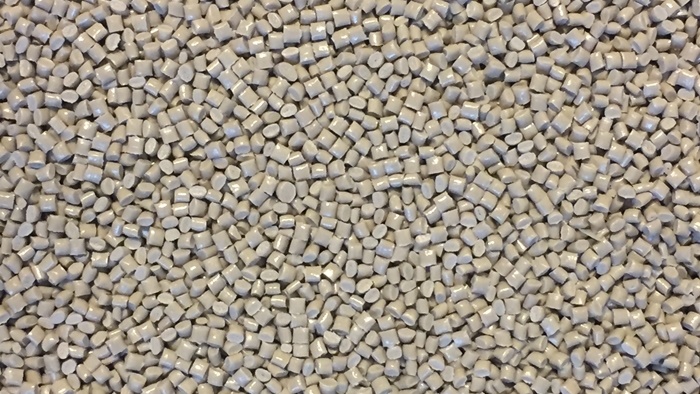

R-Natural / Virgin Granules

R-Natural / Virgin Granules

This product is currently out of stock and unavailable.

Product contains: 1 Unit of measure - Each

SKU: N/A Categories: , Tag:

Description

Technical Datasheet*

All Infos: ©CoPEEK Panjin Zhongrun High Performance Polymer Co., Ltd.

Download technical Datasheet as PDF:

G=Granules P=Powder

 Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

DensityISO 1183g/cm³1.301.301.301.30
Melt viscosityISO 1133Pa. s90130300350
Melting TemperatureISO 3146°C>340>340>340>340
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Tensile StrengthISO 527MPa951009695
Tensile Elongation at breakISO 527%15254050
Flexural StrengthISO 178MPa151165160155
Flexural ModulusISO 178GPa4.04.13.93.7
IZOD Impact Strength notchedISO 180/AJ/m at 23°C5.05.06.07.0
unnotchedISO 180/UJ/m at 23°CNBNBNBNB
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

HDT (1.8MPa)ISO 75A°C155155155153
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Dielectric Constant 1 KHzISO 60250 3.23.23.23.2
Loss Tangent 1 KHzISO 60250 0.00330.00330.00330.0033
Volume ResistivityISO 60093Ω.cm1015101510151015
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

FlammabilityUL-940,4 mmV-0V-0V-0V-0
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Mold ShrinkageISO 2577%0.7/1.20.7/1.20.7/1.20.7/1.2

Important notes:
1) Processing conditions are typical of those used in our processing laboratories
2) Data are produced in accordance with prevailing national, international and internal standards, and should be used for material comparison. Actual property values are highly dependent on part geometry, mould configuration and processing
conditions. Properties may also differ for along flow and across flow direction.

*Our technical advice, information or recommendations are made to the best of our knowledge. Since the final success is beyond our control and their circumstances are not predictable, written and oral instructions, advice and the information contained in this leaflet are not legally binding. So they have no meaning to assure certain properties of the products or their suitability for a specific purpose. In particular do not release the buyer from testing our products for their suitability for the intended procedures and purposes. For example, existing industrial property rights of third parties are to be considered. A flawless quality assurance in the context of our terms of sale and delivery.

R-Natural / Virgin Granules

Additional information

Viscosity

012G, 021G, 085G, 125G

Weight

noch festlegen
