Sheet

Sheet

This product is currently out of stock and unavailable.

Product contains: 1 Unit of measure - Each

SKU: N/A Category: Tags: ,

Description

QUALITY CHARACTERISTICS

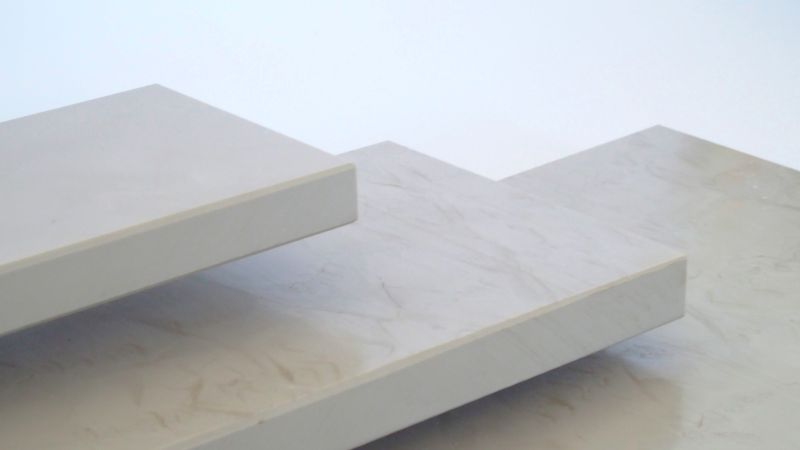

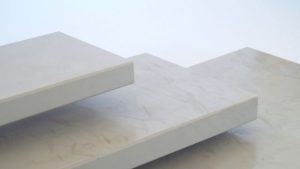

Sheets from PEEK are offered usually extruded and cut in standard lenths. Various sheet thicknesses possible. Our Dexnyl PEEK sheets are made of our own CoPEEK or compounds based on CoPEEK or other conventional brands.

COMMERCIAL CLARIFICATION

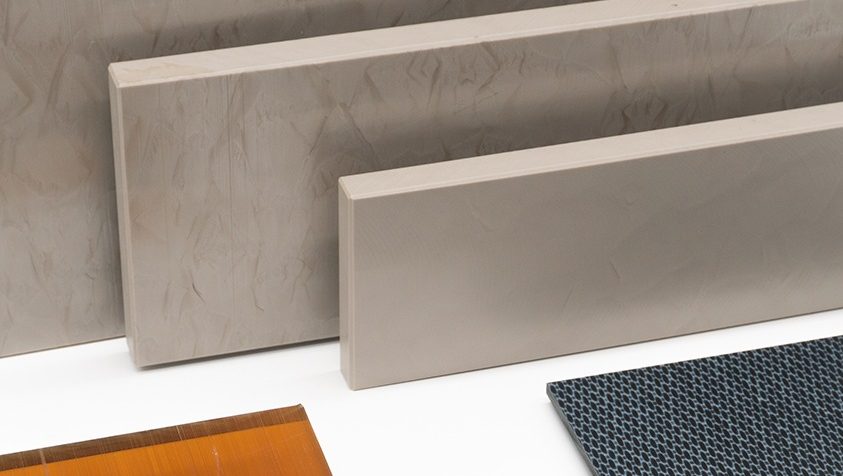

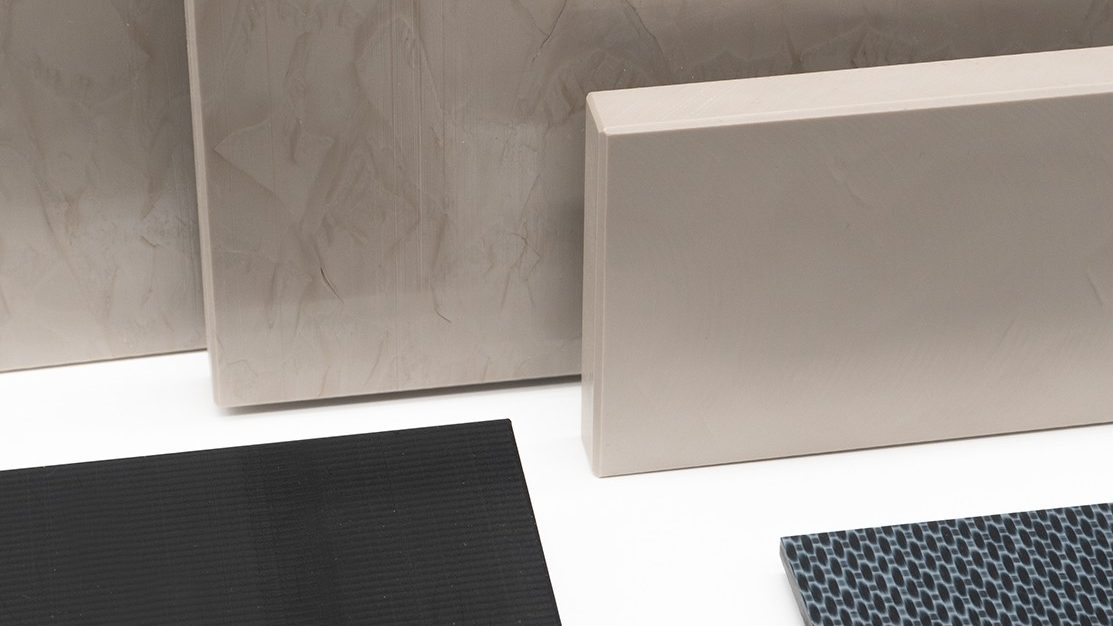

Sheets of thicknesses between 10mm and 50mm of PEEK nature but also as reinforced PEEK.

TECHNICAL DATASHEET*

Download technical Datasheet as PDF

Legend
Legend
Œ1Low
•10High
Applicable
xNot applicable
(√)Limited
k.Br.No break
n.d.Not feasible
-Not determined
n.v.Unavailable
PropertiesSymbolUnitStandardValue
Material code--Internal StandardA3A
Colour---Beige
Densityρkg/dm3ISO 11831,3
PropertiesSymbolUnitStandardValue
Compressive modulusEcMPaDIN EN ISO 6044270
Elastic limitσelMPaInternal Standard120
Comprssive stress at yieldσYMPaDIN EN ISO 604n.v.
Compressive strengthσMMPaDIN EN ISO 604n.v.
Compressive stress at 3,5% strainσ3,5%MPaDIN EN ISO 60432
Compressive strength (0,01 h)σMMPaInternal Standard120
Compressive strength (100 h)σMMPaInternal Standard107
Compressive strength (10000 h)σMMPaInternal Standard58
Compressive stress at breakσBMPaDIN EN ISO 604K.Br.
Elastic compression limitεel%Internal Standard8,8
Nominal compressive yield strainεcv%DIN EN ISO 6043,2
Nominal compressive strain at compressive strengthεcM%DIN EN ISO 6046,9
Nominal compressive strain at breakεcB%DIN EN ISO 604K.Br.
Modulus in tension (tensile modulus)EtMPaDIN EN ISO 5273600
Elastic limitσelMPaInternal Standard81
Tensile stress at yieldσYMPaDIN EN ISO 527110
Tensile strengthσMMPaDIN EN ISO 527110
Tensile stress at breakσBMPaDIN EN ISO 52784
Elastic yield pointεel%Internal Standard4,2
Yield strainεy%DIN EN ISO 5277
Elongation at maximum forceεM%DIN EN ISO 5277
Tensile elongation at breakεB%DIN EN ISO 52712,6
Modulus in flexureEfMPaDIN EN ISO 1784000
Outer fibre stress at 3,5% outer fibre strainσf3,5MPaDIN EN ISO 178126
Flexural strengthσfMMPaDIN EN ISO 178168
Flexural stress at breakσfBMPaDIN EN ISO 178k.Br.
Elongation at flexural yield stressεM%DIN EN ISO 1786,3
Flexural elongation at breakεB%DIN EN ISO 178k.Br.
Creep modulus at 1% deformation after 1000 hEN/mm²DIN 534444300
Stress at 1% deformation after 1000 hσ1%N/mm²DIN 5344443
Creep resistance--Relative value6
Ball indetation hardness H358/30 (H132/30) [H49/30]HBN/mm²DIN 2039174
Shore A hardness-ShoreDIN 5350593
Shore D hardness-ShoreDIN 5350581
Impact strength Charpy not notched-kJ/m²EN ISO 179/1eUk.Br.
Impact strength Charpy notched-kJ/m²EN ISO 179/1eA8,0
Loss tangent (1Hz)tanδ1Internal Standard0,052
Fatigue strength at 20°C, 106 stress cycles, 1 Hz-MPaInternal Standard60



PropertiesSymbolUnitStandardValue
Continuous operating temperature (long therm)RTi°CUL 746B250
Short term operating temperature (3 h)-°CInternal Standard260
Maximum Rti temperature for bushings when pressed-°CInternal Standard100
Melting temperatureTm°CDSC340
Glass transition temperatureTg°CDSC146
Coefficient of thermal expansion up to 100°Cα10-5/KISO E8305,1
Coefficient of thermal expansion up to 150°Cα10-5/KISO E8315,9
Heat distortion temperature HDT/A 1,8 M PaHDT (A)°CDIN EN ISO 75160
Thermal conductivityλW/(m*K)DIN 526120,25
Specific heat capacitycpW/(m*K)DSC1,35
Fire behaviour (3,2 mm) UL94--UL 94 HBV-0
Limiting oxygen index (LOI)%LOIDIN EN ISO 458935



PropertiesSymbolUnitStandardValue
Volume resistivityRDΩ*cmIEC 600935E16
Surface resistanceROΩIEC 600932,8E12
Penetration resistanceEkV/mmIEC 24322,5
Tracking resistance-VIEC 112150
Dielectric constant (110Hz)-1IEC 2503,2
Dissipation factor (110Hz)tanδ1IEC 1120,003



PropertiesSymbolUnitStandardValue
Max. surface pressure v=1m/minpzulN/mm²Internal test radial bushing19,12
Max. surface pressure v=10m/minpzulN/mm²2,88
Max. surface pressure v=100m/minpzulN/mm²0,11
Max. surface pressure v=200m/minpzulN/mm²0,05
Evolution of heat with v=1m/min-°C84
Evolution of heat with v=10m/min-°C158
Evolution of heat with v=100m/min-°C153
Evolution of heat with v=200m/min-°C83



PropertiesSymbolUnitStandardValue
µ static 20°C dry operationµstat.1Internal Standard (inclined plane)0,09
µ dynamic 20°C dry operationµdyn.10,07
µ dynamic 100°C dry operationµdyn.10,06



PropertiesSymbolUnitStandardValue
Wear factor at 20°C-mm/100 kmInternal test periodic translative movement under load0,15
Wear factor at 100°C-mm/100 km0,89
Wear factor at 200°C-mm/100 km0,53
Wear factor at 240°C-mm/100 km0,66
PropertiesSymbolUnitStandardValue
Tubes (hollow rods)---
Sheets---
Rods---
Plastic granules---
Injection moulded parts---
Machined parts---
PropertiesSymbolUnitStandardValue
Dimensional stability with moisture absorption--Relative value10
Water absorption 23°C / RMC 93%-%DIN EN ISO 620,05
Water absorption until an equilibrium moisture content-%DIN EN ISO 620,5
Dimensional stability with temperature variation--Relative value6
High precision bushings (negative clearance)---
Alignment adjustment--Relative value4
PropertiesSymbolUnitStandardValue
Suitable for use in water---
Resistance against hot water-°C-200
Resistance against dust, dirt, abrasive substances--Relative value7
UV rays resistance--Relative value9
Suitable for outdoor use--Relative value6
Resistance to chemicals--Relative value9
FDA compliant---
Suitable for vaccum---
Rate of desorptiona1hmbar*l (s/cm²)--
ROHS / WEEE---
Free from silicone---

Free from PTFE---
PropertiesSymbolUnitStandardValue
Resistance against disinfectant---
Moist heat sterilization--Relative valueŠ10
Gamma-rays radiation sterilization--Relative valueŠ10
Chemical sterilization--Relative valueŠ10
UV-sterilization--Relative value‡7

*All the tests have been conducted with a standard conditioning atmosphere of 23°C (at the moment no other temperature is available). All the test specimens were made through extrusion process. The specified values are established from average values of several tests and they correspond to our today’s knowledge. They are only to be used as information about our products and as help for the material selection. With these values, BIEGLO does not ensure specific properties, or the suitability for certain application, therefore BIEGLO does not assume any legal responsibility for an improper usage.
Since the plastics´ properties depend on the manufacturing process (extrusion, injection moulding), on the dimensions of the semi-finished material and on the degree of crystallinity, the actual properties of a specific product may slightly deviate from the tested ones.
For information about divergent properties do not hesitate to contact us. On request we advise you regarding the most appropriate component design and the definition of material specifications more suitable to your application data. Notwithstanding, the customer bears all the responsibility for the thorough examination of suitability, efficiency, efficacy and safety of the chosen products in pharmaceutical applications, medical devices or other end uses.

Sheet

Additional information

Thickness

10 mm, 12 mm, 16 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm

Width

625 mm, 610 mm

Length

1000 mm, 2000 mm, 3000 mm
