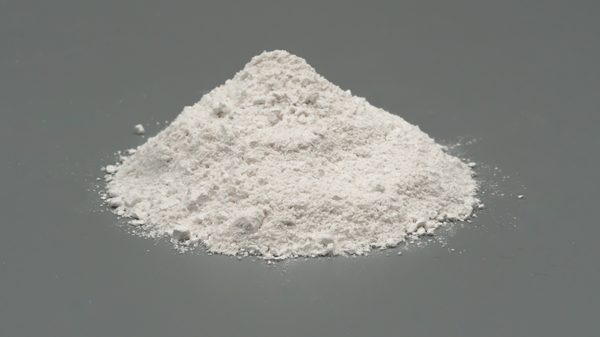

Natural / Virgin Powder

Natural / Virgin Powder

Clear

Product contains: 1 kg

SKU: N/A Categories: , Tags: ,

Description

Technical Datasheet*

All Infos: ©CoPEEK Panjin Zhongrun High Performance Polymer Co., Ltd.

Download technical Datasheet as PDF

G=Granules P=Powder

 Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Density ISO 1183 g/cm³ 1.30 1.30 1.30 1.30
Melt viscosity ISO 1133 Pa. s 90 130 300 350
Melting Temperature ISO 3146 °C >340 >340 >340 >340
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Tensile Strength ISO 527 MPa 95 100 96 95
Tensile Elongation at break ISO 527 % 15 25 40 50
Flexural Strength ISO 178 MPa 151 165 160 155
Flexural Modulus ISO 178 GPa 4.0 4.1 3.9 3.7
IZOD Impact Strength notched ISO 180/A J/m at 23°C 5.0 5.0 6.0 7.0
unnotched ISO 180/U J/m at 23°C NB NB NB NB
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

HDT (1.8MPa) ISO 75A °C 155 155 155 153
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Dielectric Constant 1 KHz ISO 60250   3.2 3.2 3.2 3.2
Loss Tangent 1 KHz ISO 60250   0.0033 0.0033 0.0033 0.0033
Volume Resistivity ISO 60093 Ω.cm 1015 1015 1015 1015
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Flammability UL-94 0,4 mm V-0 V-0 V-0 V-0
Properties Standard Unit 125G

very low viscosity

085G

085P

low viscosity

021G

021P

medium viscosity

012G

012P

high viscosity

Mold Shrinkage ISO 2577 % 0.7/1.2 0.7/1.2 0.7/1.2 0.7/1.2

Important notes:
1) Processing conditions are typical of those used in our processing laboratories
2) Data are produced in accordance with prevailing national, international and internal standards, and should be used for material comparison. Actual property values are highly dependent on part geometry, mould configuration and processing
conditions. Properties may also differ for along flow and across flow direction.

*Our technical advice, information or recommendations are made to the best of our knowledge. Since the final success is beyond our control and their circumstances are not predictable, written and oral instructions, advice and the information contained in this leaflet are not legally binding. So they have no meaning to assure certain properties of the products or their suitability for a specific purpose. In particular do not release the buyer from testing our products for their suitability for the intended procedures and purposes. For example, existing industrial property rights of third parties are to be considered. A flawless quality assurance in the context of our terms of sale and delivery.

Natural / Virgin Powder

Additional information

Viscosity

021P, 012P, 085P
