Rod

Rod

Clear

Product contains: 1 m

SKU: N/A Category: Tags: ,

Description

QUALITY CHARACTERISTICS

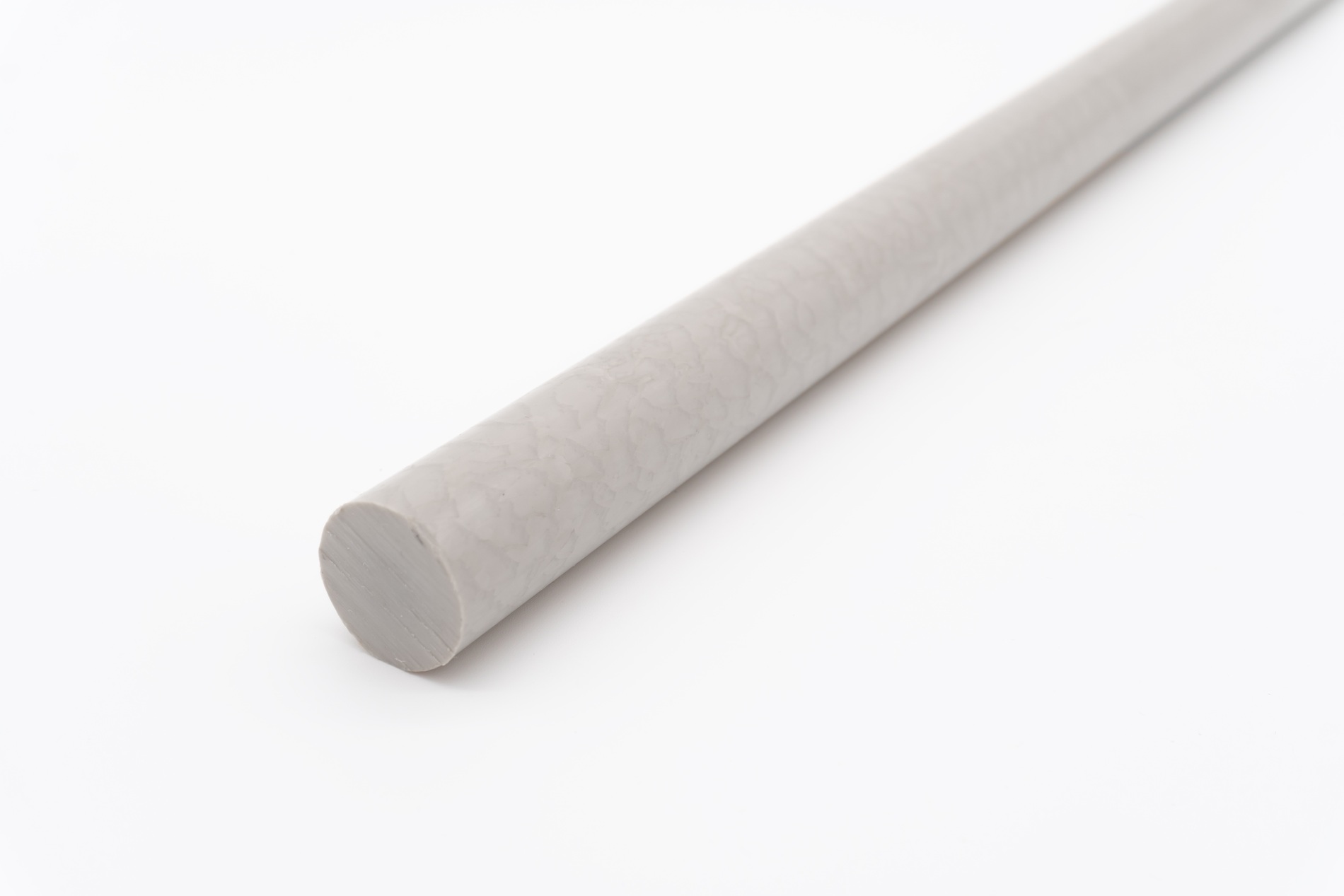

PEEK rods from PEEK-shop.de offer resistance to elevated temperatures, radiation and chemicals. Their dimensional stability and mechanical strength are second to none. Parts made-up of our PEEK offer excellent hydrolysis and electrical insulation. Easy machining and wide range of certifications are given advantages. BIEGLO offers additionally tribologically modified PEEK with superieor sliding properties and abraision resistance.

COMMERCIAL CLARIFICATION

Dexnyl© is a brand of BIEGLO GmbH used for our products of High-Performance Polymers. PEEK-Rods offered here are 1.000mm long and extruded (extr). We offer virgin, natural PEEK (nat) and compounded PEEK: PTFE/CF/Graphite – 10-10-10 (mod), PTFE (ptfe), Carbon Fiber (cf). When you order PEEK-rods we will apply a rebate for large volumes and a surplus-cost for very small orders; furthermore a logistic-cost will be added for the transport to your destination. You must log-in prior to placing an order and getting the detailed cost information.Other conditions can be found in the General Terms. Many other products are available when you contact us by E-mail.

APPLICATIONS

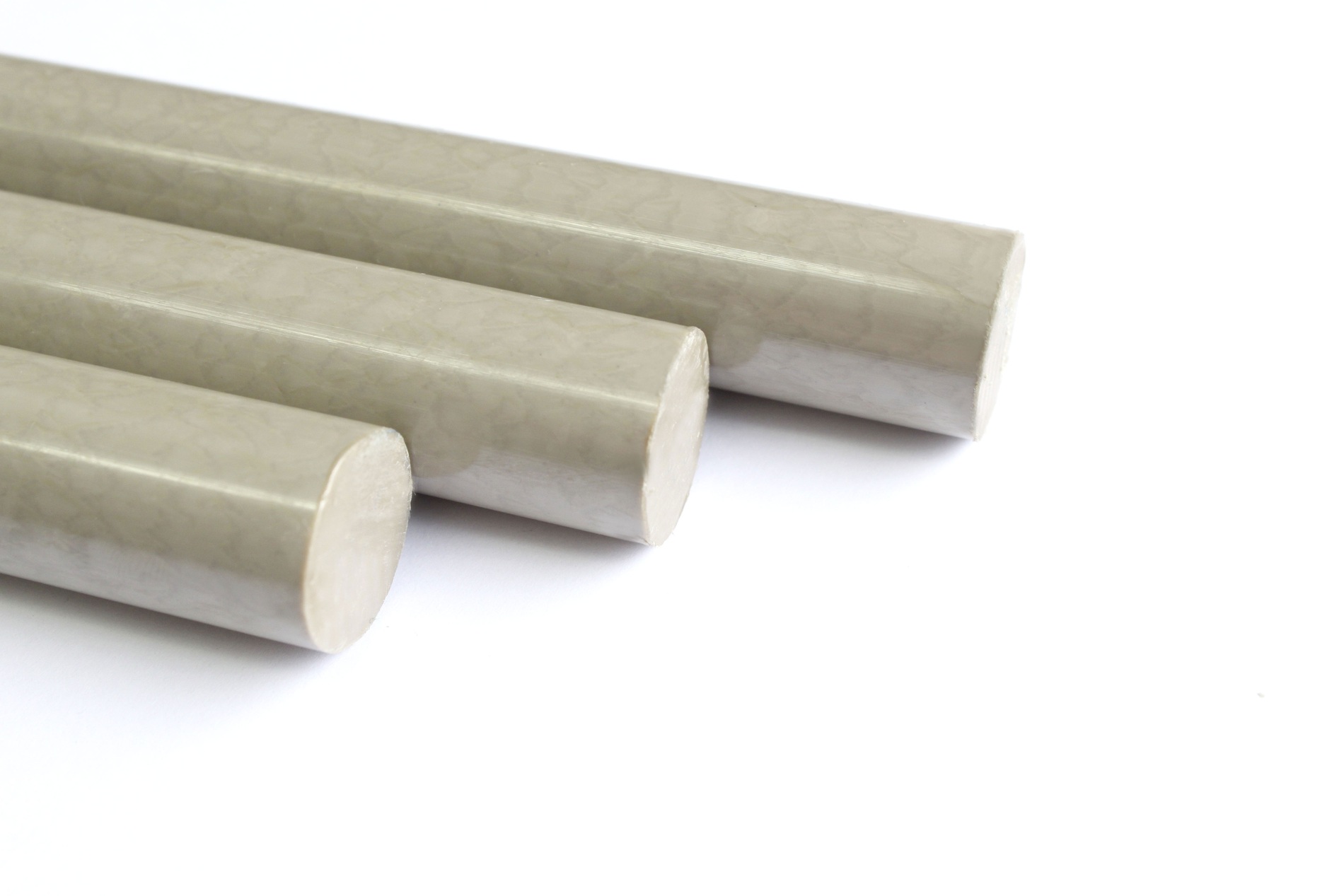

Rods Made in Germany by experienced extrusion companies. Our natural PEEK-rods are very well balanced and offer a slightly higher tenacity than common PEEK-rods. We deliver rods world-wide: high quality at competitive prices. Rods made up-of PEEK-PTFE or PEEK modified (PTFE, graphite, carbon-fibre) are also available from BIEGLO.

TECHNICAL DATASHEET*

Download technical Datasheet as PDF

Legend
Legend
Œ1 Low
•10 High
Applicable
x Not applicable
(√) Limited
k.Br. No break
n.d. Not feasible
- Not determined
n.v. Unavailable
Properties Symbol Unit Standard Value
Material code - - Internal Standard A3A
Colour - - - Beige
Density ρ kg/dm3 ISO 1183 1,3
Properties Symbol Unit Standard Value
Compressive modulus Ec MPa DIN EN ISO 604 4270
Elastic limit σel MPa Internal Standard 120
Comprssive stress at yield σY MPa DIN EN ISO 604 n.v.
Compressive strength σM MPa DIN EN ISO 604 n.v.
Compressive stress at 3,5% strain σ3,5% MPa DIN EN ISO 604 32
Compressive strength (0,01 h) σM MPa Internal Standard 120
Compressive strength (100 h) σM MPa Internal Standard 107
Compressive strength (10000 h) σM MPa Internal Standard 58
Compressive stress at break σB MPa DIN EN ISO 604 K.Br.
Elastic compression limit εel % Internal Standard 8,8
Nominal compressive yield strain εcv % DIN EN ISO 604 3,2
Nominal compressive strain at compressive strength εcM % DIN EN ISO 604 6,9
Nominal compressive strain at break εcB % DIN EN ISO 604 K.Br.
Modulus in tension (tensile modulus) Et MPa DIN EN ISO 527 3600
Elastic limit σel MPa Internal Standard 81
Tensile stress at yield σY MPa DIN EN ISO 527 110
Tensile strength σM MPa DIN EN ISO 527 110
Tensile stress at break σB MPa DIN EN ISO 527 84
Elastic yield point εel % Internal Standard 4,2
Yield strain εy % DIN EN ISO 527 7
Elongation at maximum force εM % DIN EN ISO 527 7
Tensile elongation at break εB % DIN EN ISO 527 12,6
Modulus in flexure Ef MPa DIN EN ISO 178 4000
Outer fibre stress at 3,5% outer fibre strain σf3,5 MPa DIN EN ISO 178 126
Flexural strength σfM MPa DIN EN ISO 178 168
Flexural stress at break σfB MPa DIN EN ISO 178 k.Br.
Elongation at flexural yield stress εM % DIN EN ISO 178 6,3
Flexural elongation at break εB % DIN EN ISO 178 k.Br.
Creep modulus at 1% deformation after 1000 h E N/mm² DIN 53444 4300
Stress at 1% deformation after 1000 h σ1% N/mm² DIN 53444 43
Creep resistance - - Relative value 6
Ball indetation hardness H358/30 (H132/30) [H49/30] HB N/mm² DIN 2039 174
Shore A hardness - Shore DIN 53505 93
Shore D hardness - Shore DIN 53505 81
Impact strength Charpy not notched - kJ/m² EN ISO 179/1eU k.Br.
Impact strength Charpy notched - kJ/m² EN ISO 179/1eA 8,0
Loss tangent (1Hz) tanδ 1 Internal Standard 0,052
Fatigue strength at 20°C, 106 stress cycles, 1 Hz - MPa Internal Standard 60



Properties Symbol Unit Standard Value
Continuous operating temperature (long therm) RTi °C UL 746B 250
Short term operating temperature (3 h) - °C Internal Standard 260
Maximum Rti temperature for bushings when pressed - °C Internal Standard 100
Melting temperature Tm °C DSC 340
Glass transition temperature Tg °C DSC 146
Coefficient of thermal expansion up to 100°C α 10-5/K ISO E830 5,1
Coefficient of thermal expansion up to 150°C α 10-5/K ISO E831 5,9
Heat distortion temperature HDT/A 1,8 M Pa HDT (A) °C DIN EN ISO 75 160
Thermal conductivity λ W/(m*K) DIN 52612 0,25
Specific heat capacity cp W/(m*K) DSC 1,35
Fire behaviour (3,2 mm) UL94 - - UL 94 HB V-0
Limiting oxygen index (LOI) % LOI DIN EN ISO 4589 35



Properties Symbol Unit Standard Value
Volume resistivity RD Ω*cm IEC 60093 5E16
Surface resistance RO Ω IEC 60093 2,8E12
Penetration resistance E kV/mm IEC 243 22,5
Tracking resistance - V IEC 112 150
Dielectric constant (110Hz) - 1 IEC 250 3,2
Dissipation factor (110Hz) tanδ 1 IEC 112 0,003



Properties Symbol Unit Standard Value
Max. surface pressure v=1m/min pzul N/mm² Internal test radial bushing 19,12
Max. surface pressure v=10m/min pzul N/mm² 2,88
Max. surface pressure v=100m/min pzul N/mm² 0,11
Max. surface pressure v=200m/min pzul N/mm² 0,05
Evolution of heat with v=1m/min - °C 84
Evolution of heat with v=10m/min - °C 158
Evolution of heat with v=100m/min - °C 153
Evolution of heat with v=200m/min - °C 83



Properties Symbol Unit Standard Value
µ static 20°C dry operation µstat. 1 Internal Standard (inclined plane) 0,09
µ dynamic 20°C dry operation µdyn. 1 0,07
µ dynamic 100°C dry operation µdyn. 1 0,06



Properties Symbol Unit Standard Value
Wear factor at 20°C - mm/100 km Internal test periodic translative movement under load 0,15
Wear factor at 100°C - mm/100 km 0,89
Wear factor at 200°C - mm/100 km 0,53
Wear factor at 240°C - mm/100 km 0,66
Properties Symbol Unit Standard Value
Tubes (hollow rods) - - -
Sheets - - -
Rods - - -
Plastic granules - - -
Injection moulded parts - - -
Machined parts - - -
Properties Symbol Unit Standard Value
Dimensional stability with moisture absorption - - Relative value 10
Water absorption 23°C / RMC 93% - % DIN EN ISO 62 0,05
Water absorption until an equilibrium moisture content - % DIN EN ISO 62 0,5
Dimensional stability with temperature variation - - Relative value 6
High precision bushings (negative clearance) - - -
Alignment adjustment - - Relative value 4
Properties Symbol Unit Standard Value
Suitable for use in water - - -
Resistance against hot water - °C - 200
Resistance against dust, dirt, abrasive substances - - Relative value 7
UV rays resistance - - Relative value 9
Suitable for outdoor use - - Relative value 6
Resistance to chemicals - - Relative value 9
FDA compliant - - -
Suitable for vaccum - - -
Rate of desorption a1h mbar*l (s/cm²) - -
ROHS / WEEE - - -
Free from silicone - - -

Free from PTFE - - -
Properties Symbol Unit Standard Value
Resistance against disinfectant - - -
Moist heat sterilization - - Relative value Š10
Gamma-rays radiation sterilization - - Relative value Š10
Chemical sterilization - - Relative value Š10
UV-sterilization - - Relative value ‡7

*All the tests have been conducted with a standard conditioning atmosphere of 23°C (at the moment no other temperature is available). All the test specimens were made through extrusion process. The specified values are established from average values of several tests and they correspond to our today’s knowledge. They are only to be used as information about our products and as help for the material selection. With these values, BIEGLO does not ensure specific properties, or the suitability for certain application, therefore BIEGLO does not assume any legal responsibility for an improper usage.
Since the plastics´ properties depend on the manufacturing process (extrusion, injection moulding), on the dimensions of the semi-finished material and on the degree of crystallinity, the actual properties of a specific product may slightly deviate from the tested ones.
For information about divergent properties do not hesitate to contact us. On request we advise you regarding the most appropriate component design and the definition of material specifications more suitable to your application data. Notwithstanding, the customer bears all the responsibility for the thorough examination of suitability, efficiency, efficacy and safety of the chosen products in pharmaceutical applications, medical devices or other end uses.

Rod

Additional information

Length

1000 mm

Diameter

6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm, 22 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm
